Product Details:
Payment & Shipping Terms:
|
| Material: | Alumina Cordierite | Size: | 160*14mm |
|---|---|---|---|
| Gas Hole Size: | 1-1.2mm | Color: | Blue |
| Application: | Burner / Grill / Heater / Cooktop / Stove / Etc | Feature: | Catalytic Ceramics |
| Surface Burning Temperature: | 1000-1200°C | Highest Working Temperature: | >1375°C |
| Highlight: | gas heater ceramic plates,porous ceramic plate |
||

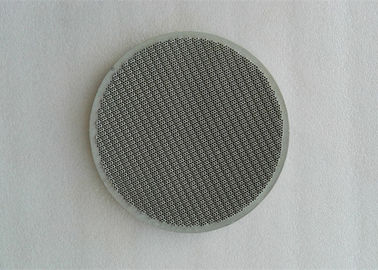

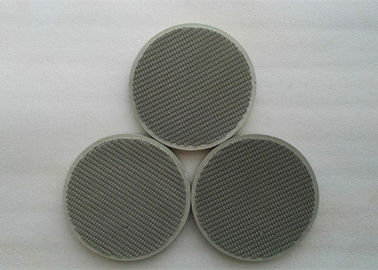

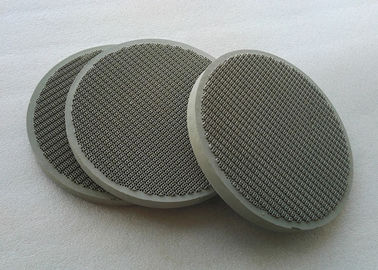

160mm Diameter Cordierite Porous Infrared Honeycomb Ceramic Plate For Cooking Burner
Applications:
Barbecues,Gyro Cookers,Broilers,Pizza Ovens,Convection Ovens,Pressure Fryers,Deep Fat Fryers,food Process,Evaporators,gas Ranges,Gas Ovens Rotisserie Ovens Griddles Space Heaters Greenhouse Sear Cookers,etc.and various burners, heaters and barbecue set which burn gas.
Physical Merits:
good thermal shock resistance (no cracks after 3 times thermal shock from 800C to cold water),
high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side),
good endurance for high temperature
high resistance for erosion
Specification:
| Material | Alumina cordierite Ceramic |
| Diameter | 160mm |
| thickness | 14mm |
| gas hole size | 1-1.2mm |
| color | blue |
| Shape | round |
| Volume density | 0.45-0.65g/cm3 |
| Feature | 20~50% energy saved |
| Surface burning temperature | 1000-1200°C |
| Highest Working Temperature | >1375°C |
| CO Release | ≤80ppm |
| NOx Release | ≤10ppm |
| Application | |
| Barbecues | Gas Cookers |
| Broilers | Pizza Ovens |
| Convection Ovens | Pressure Fryers |
| Deep Fat Fryers | Process and etc. |
