Product Details:
Payment & Shipping Terms:
|
| Voltage Input: | AC110V | Frequancy: | 60Hz |
|---|---|---|---|
| Weight: | 0.5kg | Arcing Distance: | 0.6cm |
| Output: | 12KV Above | With Flame Sensor: | Yes |
| Max Ignition Time: | 10s (20s Or 5s) | Max Rekindling: | 10s (20s Or 5s) |
| Highlight: | bbq electronic ignition,electric gas grill ignitor |
||

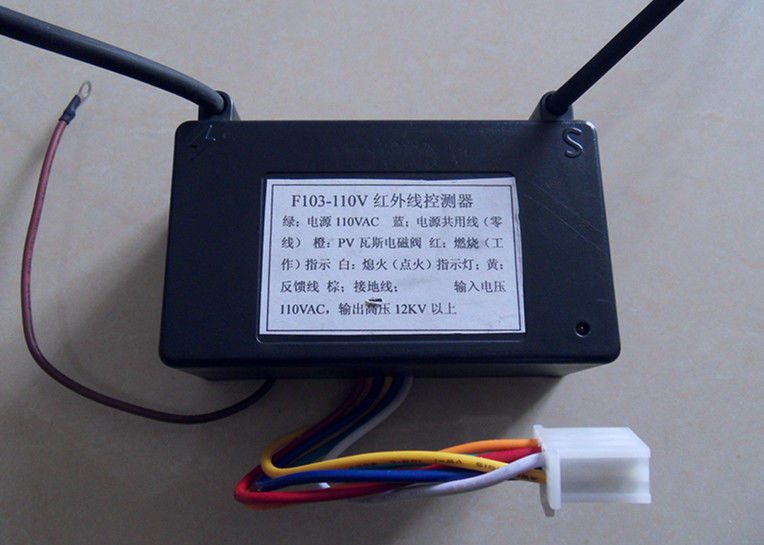

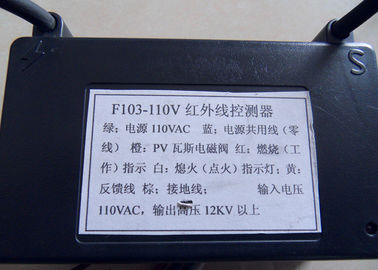

110VAC Silicone Cable Gas Oven Electric Pulse Igniter 12kv Output With Flame Sensor
Features:
Electric automatic ignition or PLC control ignition
Repeat igniting the gas automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can send out warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can shut off the gas supply immediately.
Technology of Single-chip and digital microcomputer, lightning proof to ensure safety use.
Advantage:
1.They are widely used for the igntion of gas oven, gas burner, gas heater, gas cooker, etc.
2.good quality plastic that can high temperature resistant
3.easy operational igniter, 110VAC, power on spark, power off stop igniting.
4.two silicone cable length, length can be customized.
Specification:
| Model | F110B | With flame sensor | Yes |
| Volt Input | AC110V | Arcing distance | 6mm |
| output voltage | 12KV above | line number | 7pcs |
| Max rekindling time | 10s (20s or 5s) | line colors | Black,White,Yellow,Red,Orange,Blue,Green |
| Max ignition time | 10s (20s or 5s) |
