Product Details:
Payment & Shipping Terms:
|
| Burner Box: | Cast Iron | Heat Output: | 15000BTU |
|---|---|---|---|
| Dimensions: | 554*84*102 | Consumption: | 0.28 LPG (Kg/hr) |
| Tube: | Venturi Tube | Nozzle: | LPG / NG |
| With Screen Net: | Yes | Weight: | 6kgs |
| Highlight: | industrial gas burner,ceramic infrared burner bbq |
||

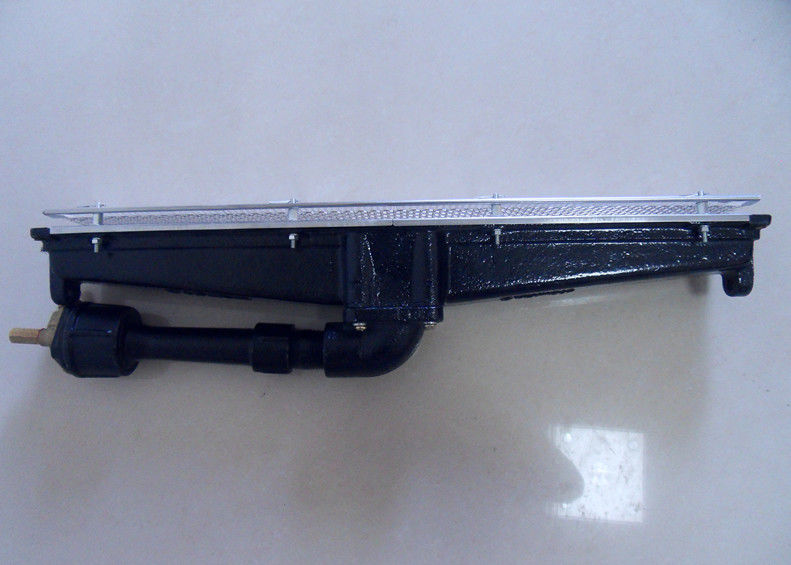

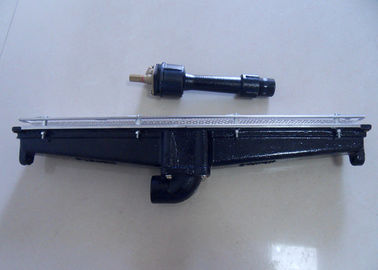

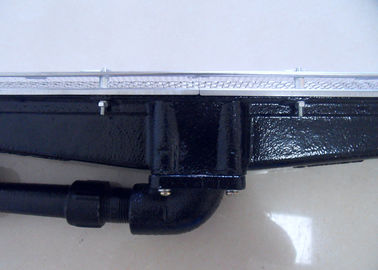

Cast Iron Catalytic Ceramics Gas Infrared Burner With Venturi Tube For Oven
Introduction:
Infrared Burner takes honeycomb ceramic plates as burner, the gas can premix with air when burning and ensure burning completely. Thatcan greatly reduce the emission of pollutants. When burning its about 70% energy changes into infrared by the way of radiate. Such infrared wave (Length 2-4um) can be easily absorbed by physical elements and polymer. That infrared wave has strong penetration which can stimulate the resonance of water molecules, evenly penetrate in the depths of the core material is heated, make sure evenly heating, improve the heating quality and drying efficiency etc. gas infrared heating has become a new technology and new trend. It has been widely used in many fields, such as BBQ grill, bbq oven, gas infrared oven.
Advantages:
1. Save above 40% energy than that of electric burner
2. Eco-friendly: CO<80ppm;NOx<10ppm;CHx<50ppm
3. Easy use with gas nozzles preinstalled
4. fast baking speed by infrared radiation
5. cast iron burner box very durable
6. protect with screen net to avoid ceramics broken when drop.
Specifications:
| tube | venturi tube | Net Weight | 6kgs |
| Dimension | 554*84*102 | Gas Type | LPG / NG |
| Consumption | 0.28 LPG (Kg/hr) | LPG pressure | 2.8-3kpa |
| Heat Output | 15000BTU | NG pressure | 2-2.2kpa |
| nozzle | LPG / NG | nozzle thread | 6mm copper tube |
| with protect net | yes | net material | stainless steel |
| application | curing oven, bbq grill, heat treatment, etc. | ||
